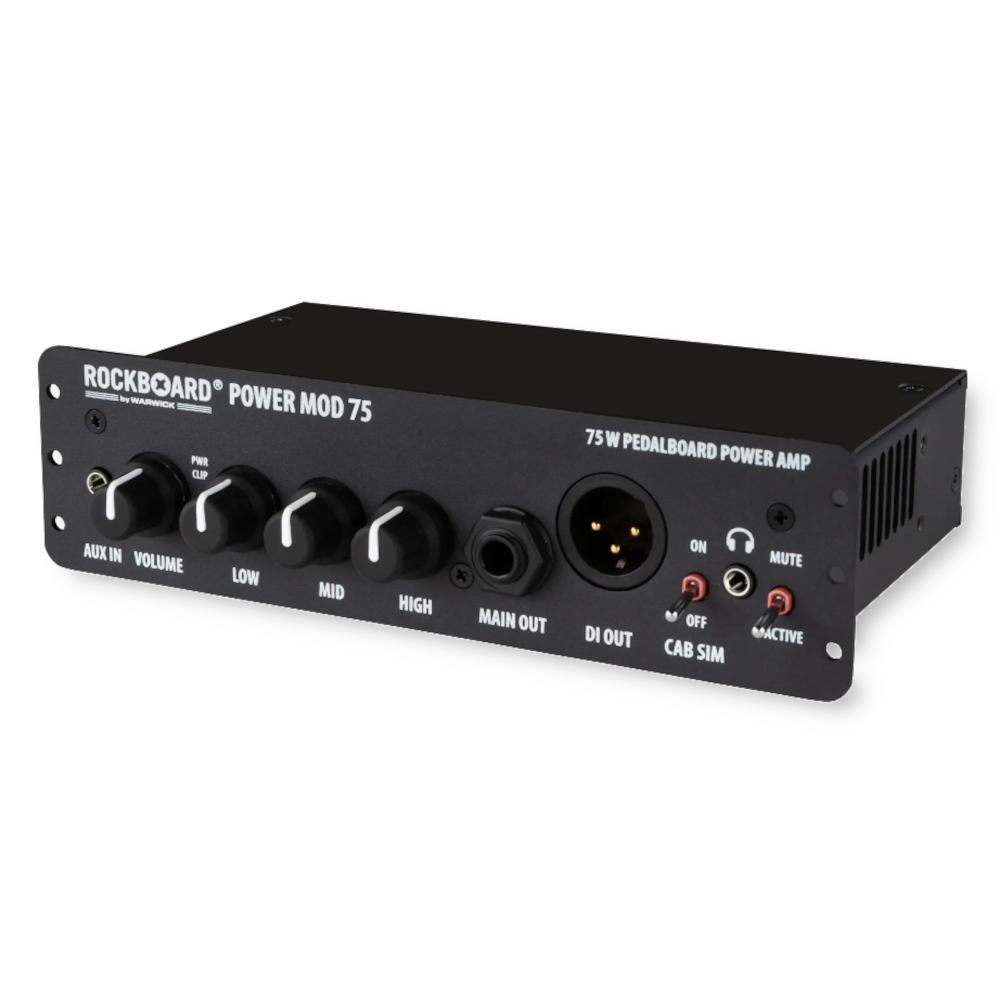

Rockboard MOD 75 pedalboard amplifier module

The Rockboard MOD 75 and 150 modules are compact amplifier modules. Your speaker cabinet (min. 4 ohm) can be directly connected to the module.

-amplifier module for Rockboard pedalboards.

-solid state class D amplifier circuit.

-power (@1%THD) 50W at 4 ohm, 30W at 8 ohm

-master volume, does not control the DI-output.

-active 3-band EQ.

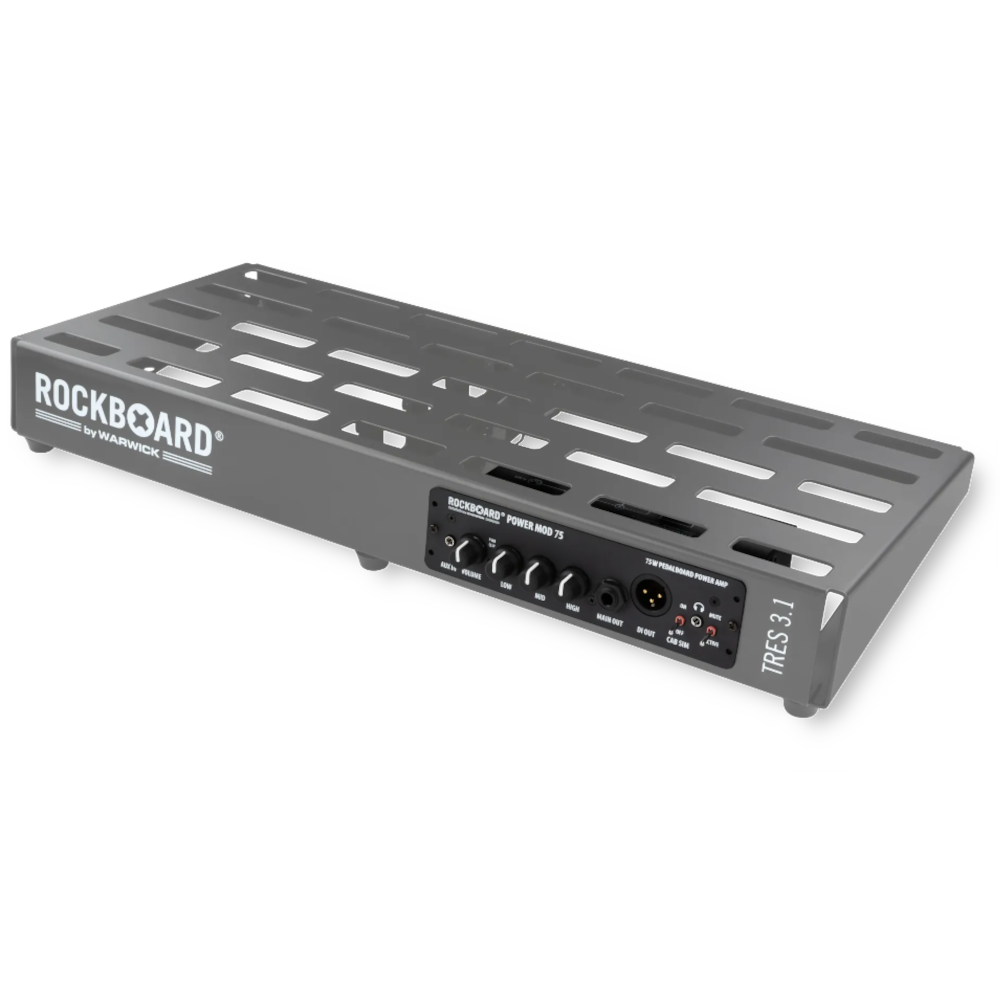

-suitable for Rockboard pedalboards ( Duo models excepted )

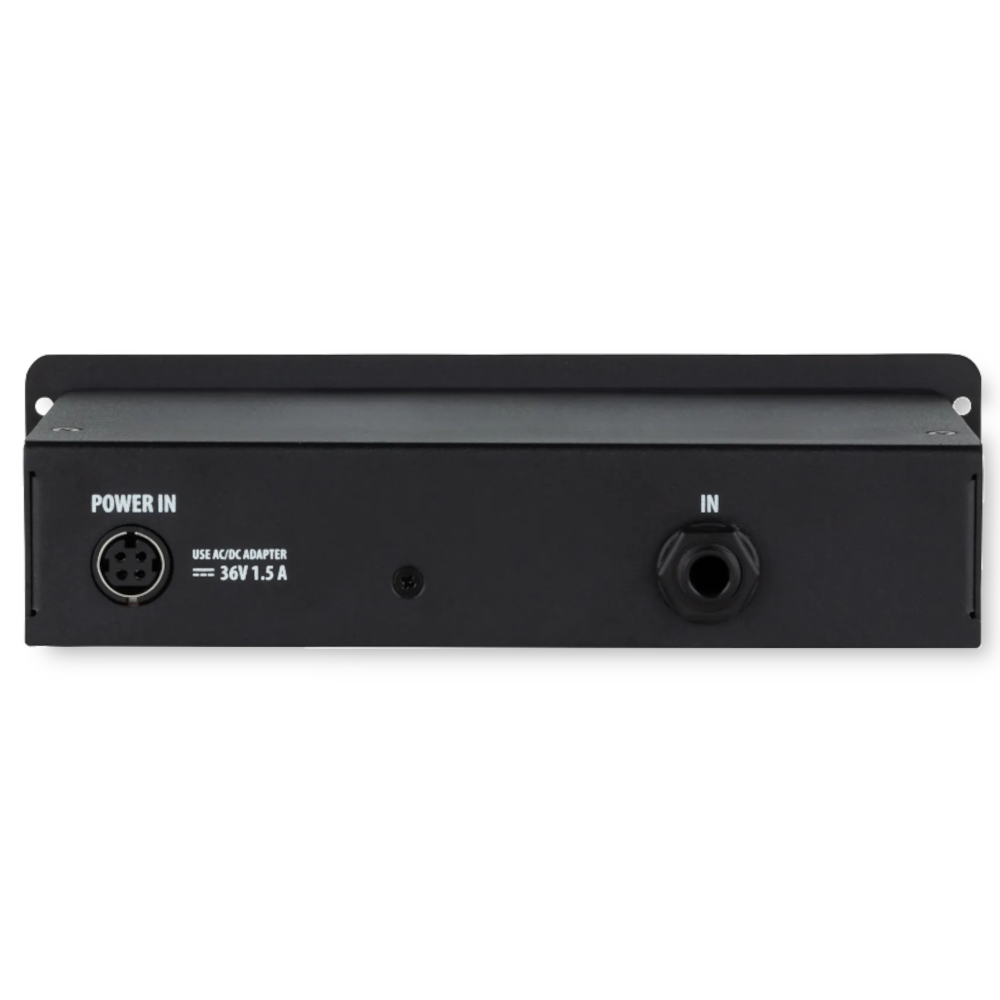

-1 x 6,3 mm input on the rear panel.

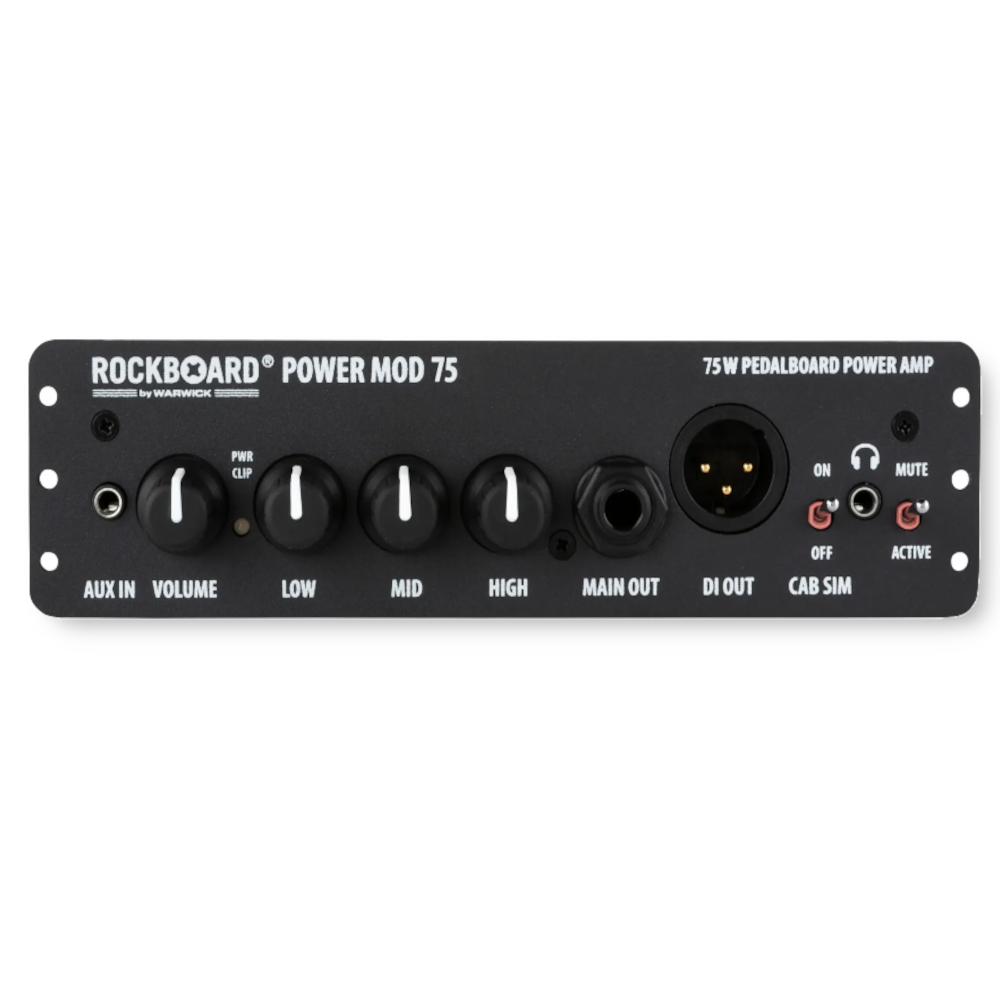

-1 x 6,3 mm jack output on front, for speaker connection (min. 4 ohm!).

-can be used without connecting a speaker cabinet.

-balanced XLR DI output (pre-EQ).

-switchable speaker simulation, works on all outputs.

-mute switch, disables speaker output.

-power/clip LED; green for power on, red when input is too high.

-3,5 mm headphone output.

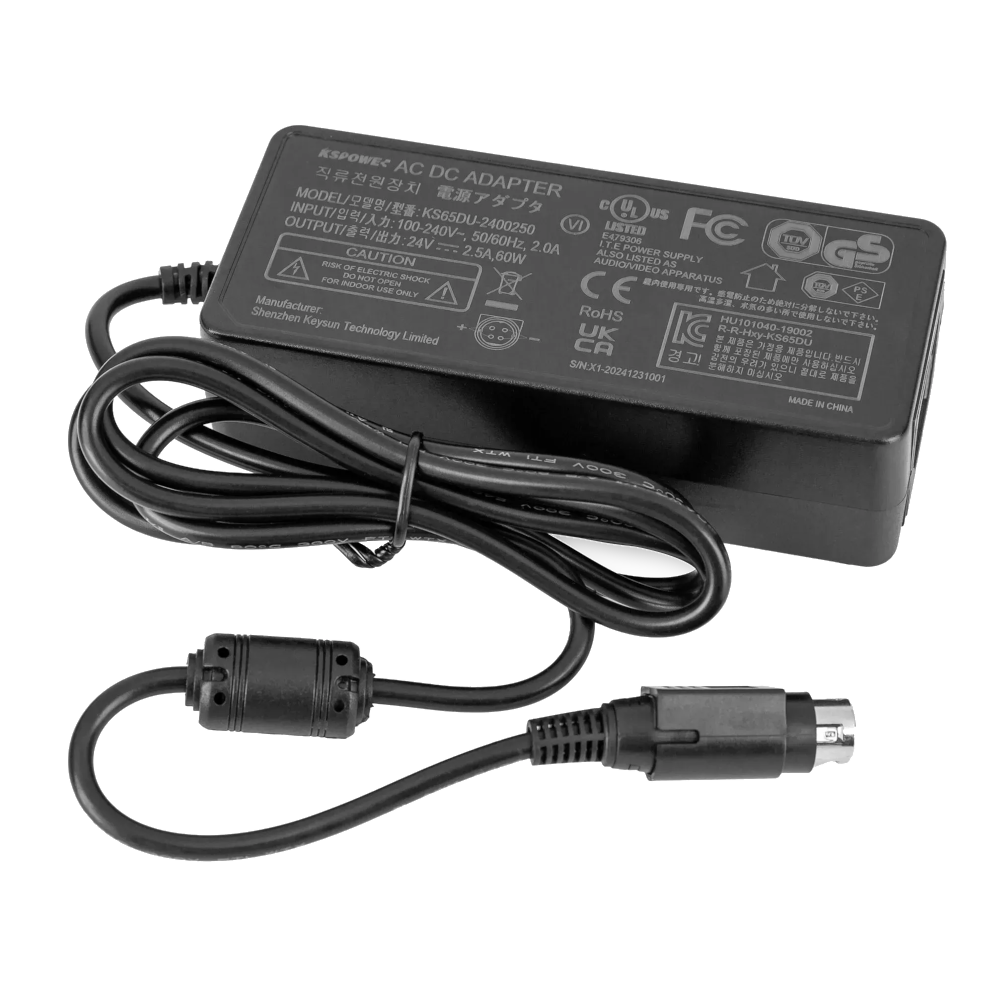

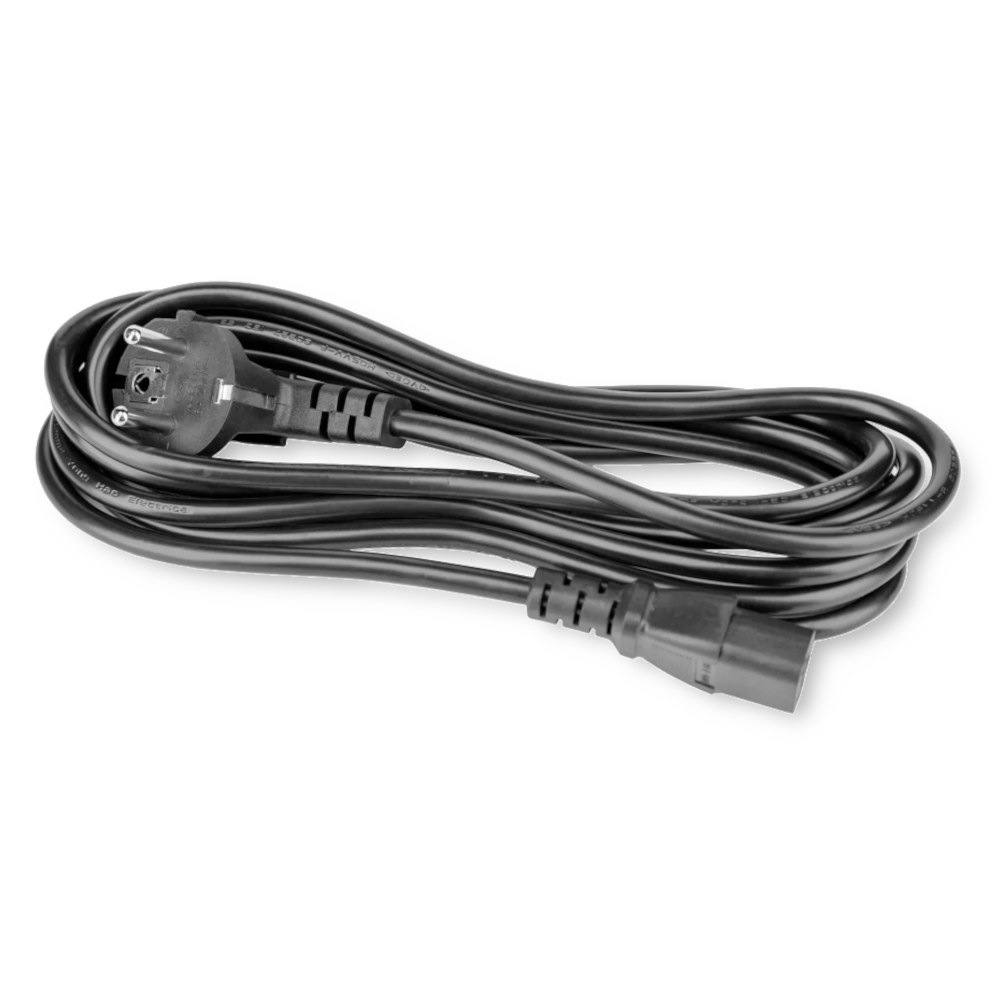

-seperate power supply included.

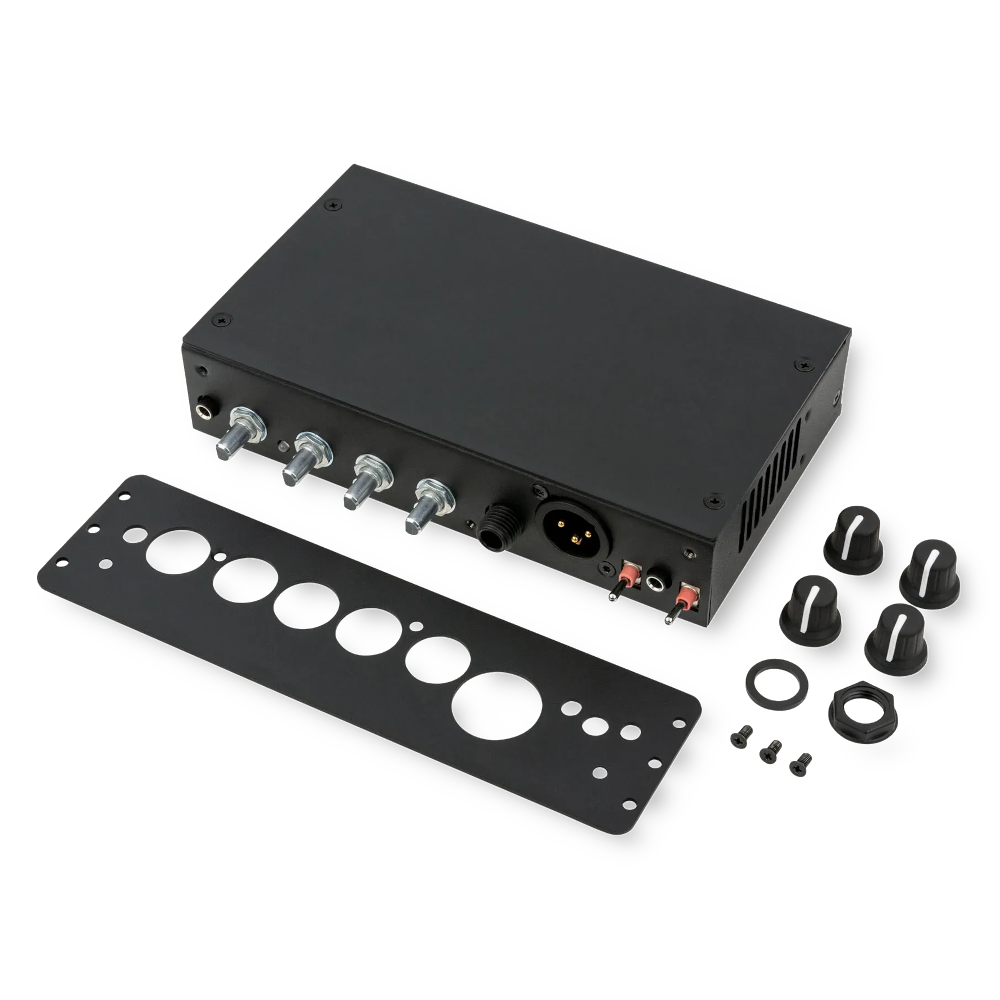

-detachable front panel, can also be mounted on top of the pedalboard.

-dimensions WxDxH: 175 x 116 x 47 mm.

Rockboard MOD 75-150 manual
